Cat® 200kVA Diesel Generator - DE200GC

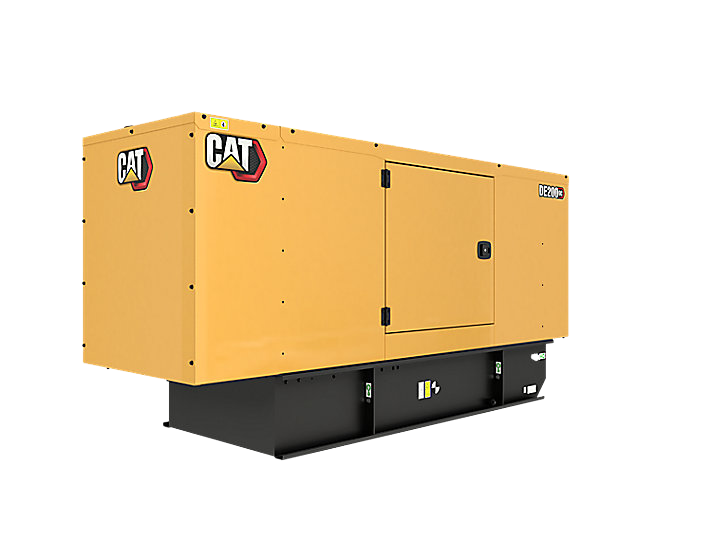

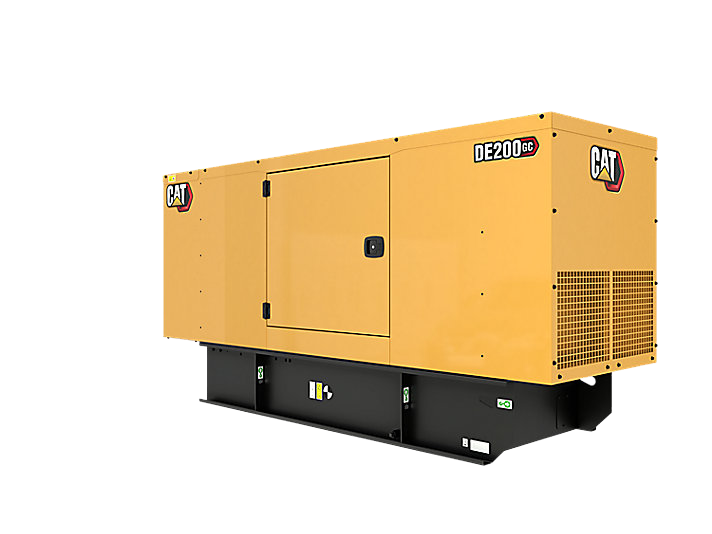

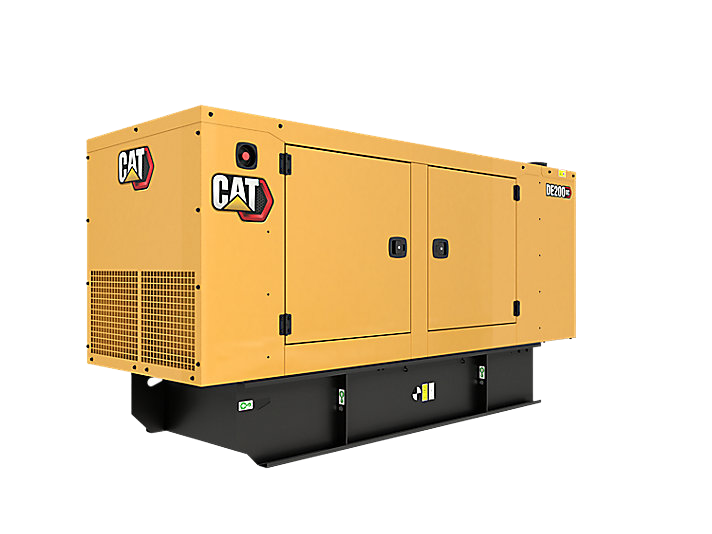

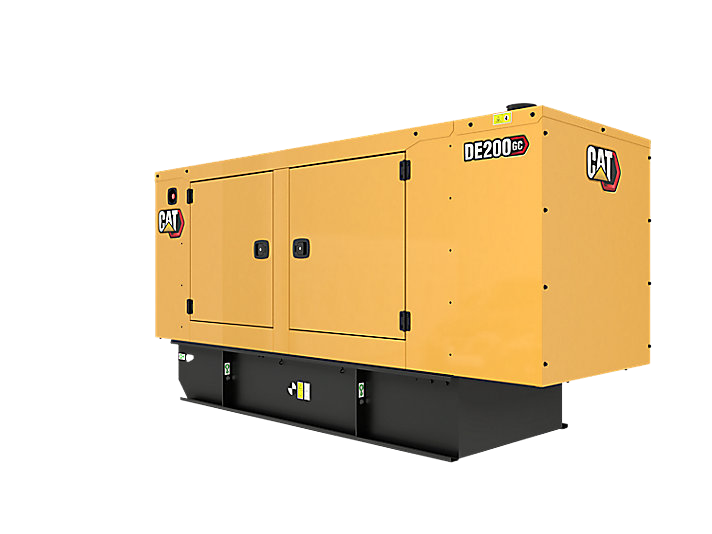

The Caterpillar DE200GC diesel generator set is designed to produce electrical power when required. The DE200GC meets ISO 8528-5 transient response requirements, producing reliable power of 200 kVA at 50 Hz.

Model reference	DE200GC
Engine	Cat® C7.1 Inline 4-stroke Diesel
Frequency	50Hz

Ratings

	Standby (50Hz)
Genset power rating	200 kVA
Genset power rating with fan @ 0.8 power factor	160 kW

Voltage	400V
Rated current	288.7 Amps

Overall dimensions

Frame type	Dimensions	Weight
	(L x W x H) mm	kg
Canopied	3325 x 1134 x 1666	1931

Datasheets

DE200GC	Sound Attenuated Enclosures

The Caterpillar DE200GC diesel generator set is a reliable and efficient power generation solution designed to provide electrical power when needed. It is specifically engineered to meet the demanding requirements of various applications, including residential, commercial, and industrial sectors.

The CAT DE200GC generator set is capable of producing a continuous power output of 200 kilovolt-amperes (kVA) at a frequency of 50 Hertz (Hz). This power rating indicates the maximum electrical load the generator can handle continuously without any significant performance degradation. With its 200 kVA capacity, the DE200GC is suitable for powering a wide range of equipment and systems, including but not limited to machinery, appliances, lighting, and HVAC systems.

The diesel engine used in the CAT DE200GC gen set is known for its durability, fuel efficiency, and long operating life. Diesel generators are preferred for their robustness and ability to provide a consistent power supply over extended periods. Caterpillar, a renowned manufacturer in the power generation industry, incorporates their expertise in engine design and manufacturing to ensure the DE200GC operates reliably and efficiently.
