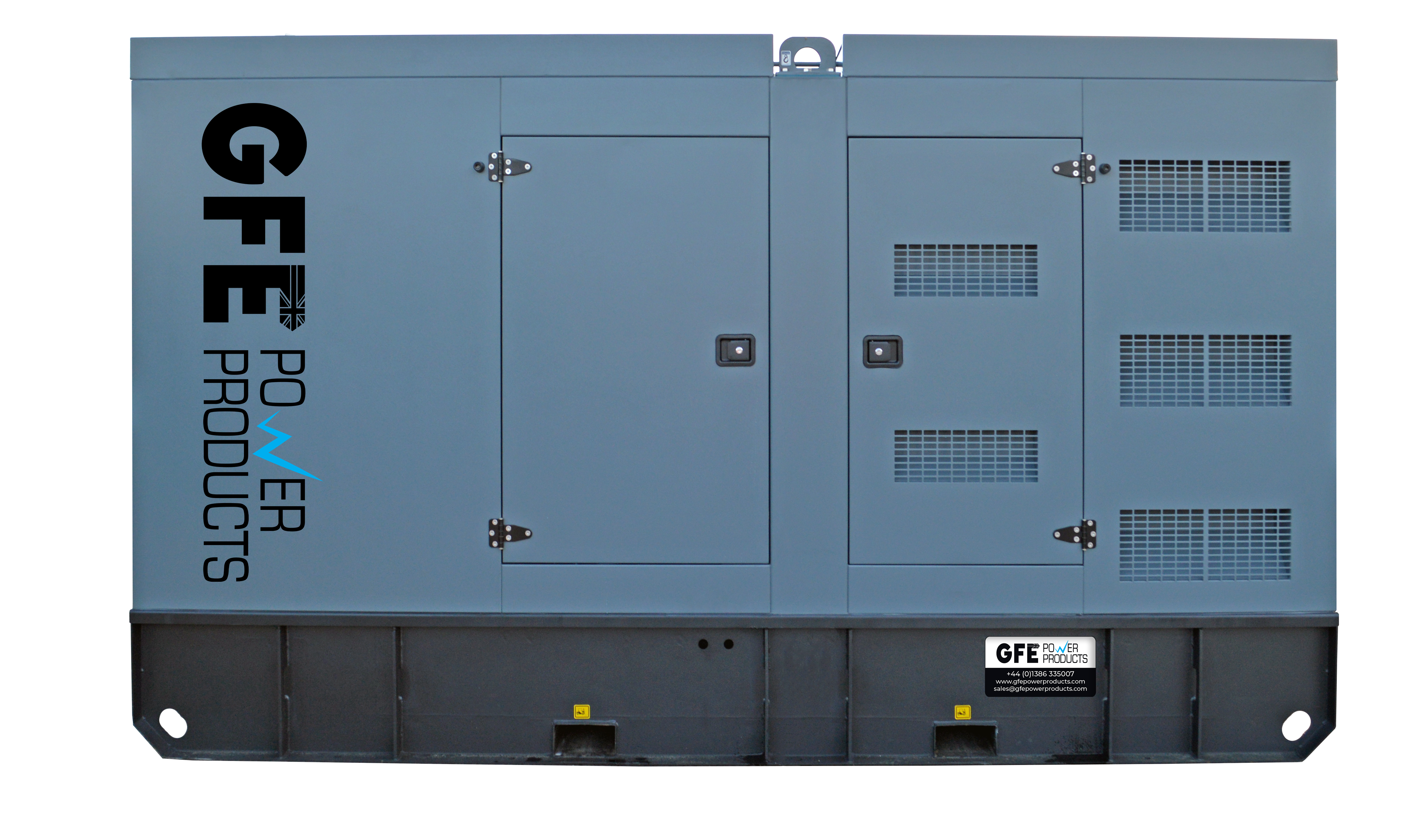

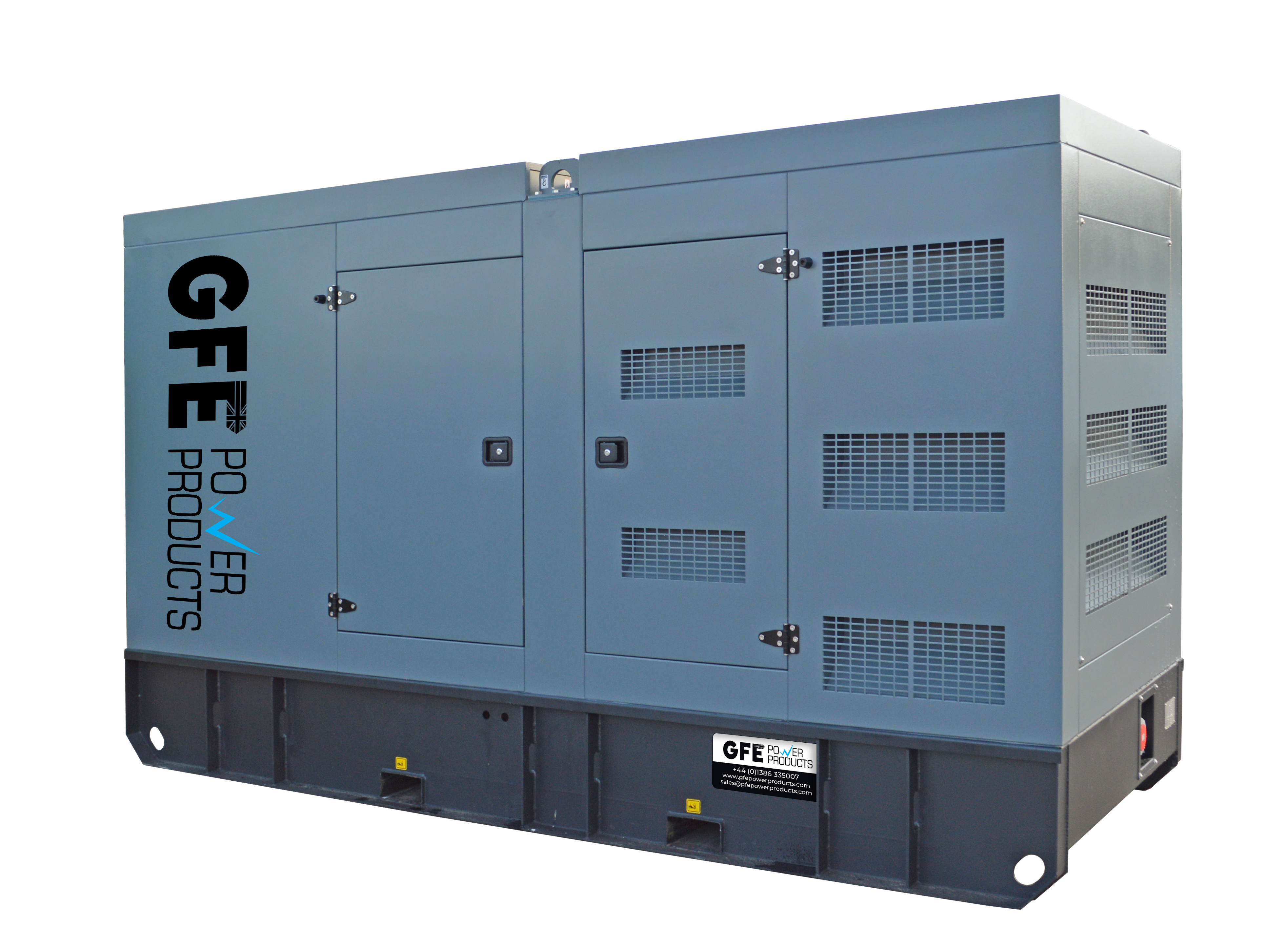

GFE 200kVA Diesel Generator - GFE230GGF
| Model reference |
GFE230GGF (Canopied) |
| Engine |
GFE250E |
| Alternator |
GFE231A |
| Control panel |
GFE920 |
| Frequency |
50Hz |
| Engine speed |
1500rpm |
| Phase / Poles |
3-Phase / 4-Pole |
Ratings
|
kWe |
kVA |
| Prime Power (PRP) |
160 |
200 |
Standby Power (ERP)
|
184 |
230 |
Voltage
|
400/230V |
| Rated current |
|
| Fuel consumption |
@100% load L/h 49.1 |
Overall dimensions
| Frame type |
Dimensions |
Weight |
Base tank
@100% load |
|
(W x L x H) mm |
kg |
Litres |
| Canopied |
3600 x 1165 x 2010
|
TBC |
350 |
| Open |
2550 x 960 x 1875 |
TBC |
350 |
Datasheets
| GFE220GGF |
Engine |
Alternator |
|
 |
|
|
