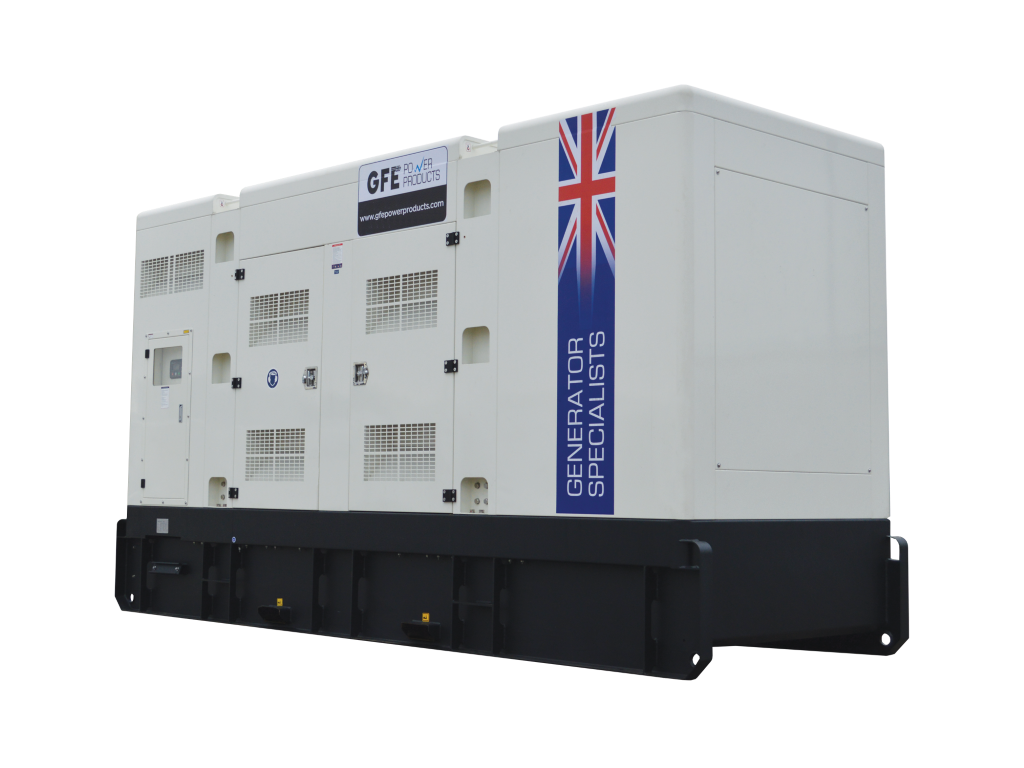

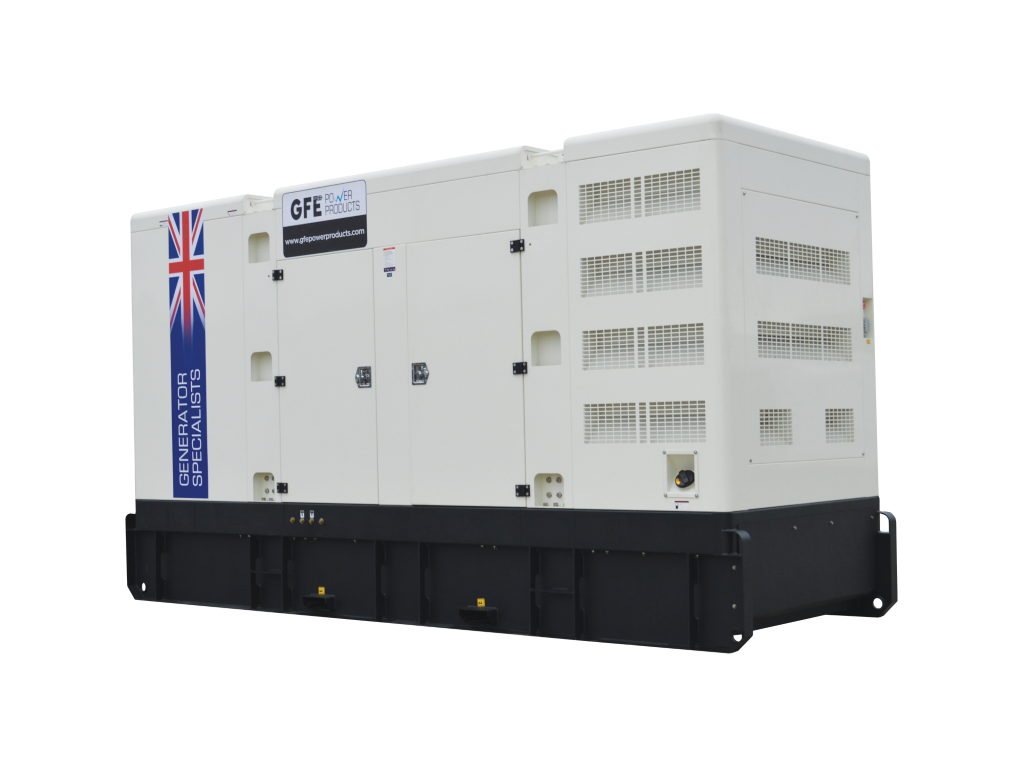

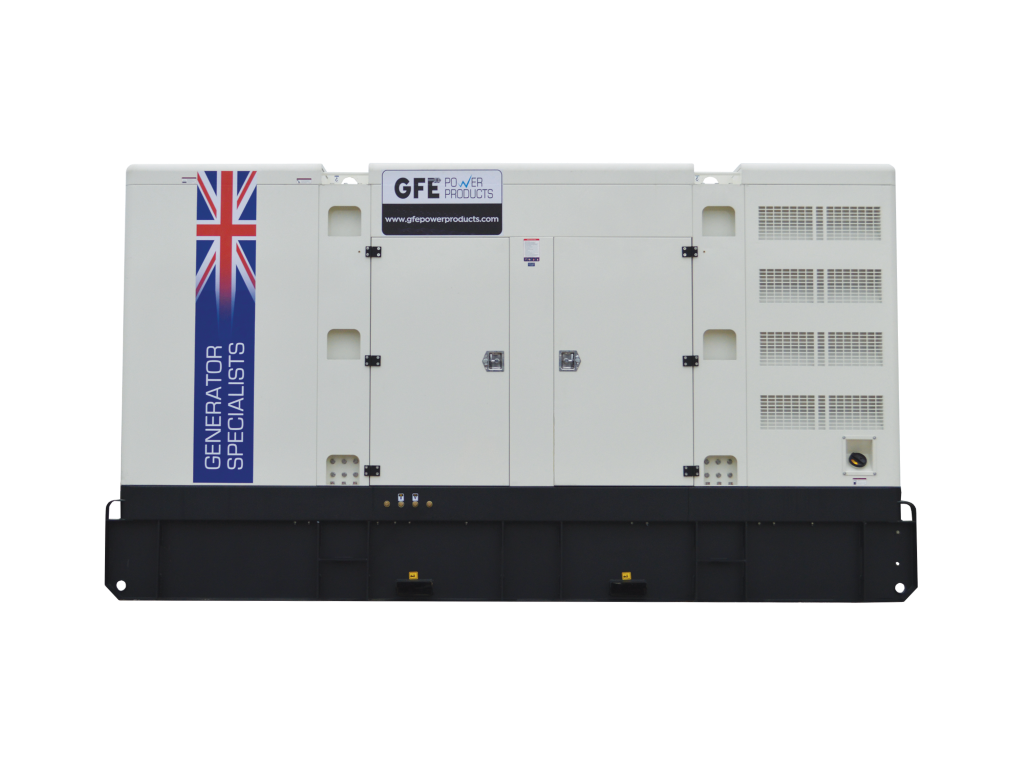

Perkins 350kVA Diesel Generator - GFE385PLC-PRO
Perkins 350kVA Diesel Generator - GFE385PLC-PRO
Perkins 350kVA Diesel Generator - GFE385PLC-PRO
Perkins 350kVA Diesel Generator - GFE385PLC-PRO

Perkins 350kVA Diesel Generator - GFE385PLC-PRO

Housing:
Tank:

As output demands grow, the 251-550kVA GFE Perkins Powered range is prepared to meet the challenge, even in the toughest conditions. With world-class Perkins engines and featuring Leroy Somers alternators and Deepsea controllers, this range is ideal for agricultural, manufacturing, and heavy industrial applications.

Model reference GFE385PLC-PRO (Canopied) / GFE385PLO-PRO (Open)
Engine Perkins 2206C-E13TAG2
Alternator Leroy Somer TAL-046-H
Control panel Deepsea DSE4520
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 280 350
Standby Power (ERP)
 308 385


Voltage
 400V
Rated current 505 Amps
Fuel consumption @100% load L/h 75



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres
Canopied 4400 x 1422 x 2430 4290 696
Open 3460 x 1150 x 2030 3060 614


Datasheets

 GFE385PLC Engine Alternator
