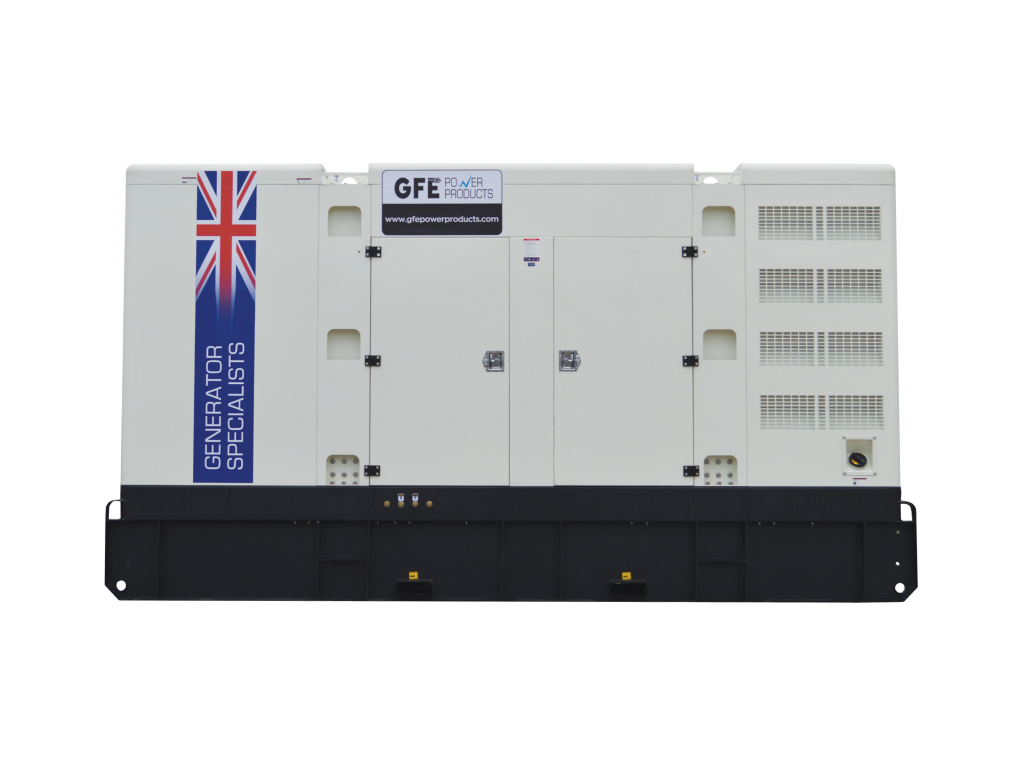

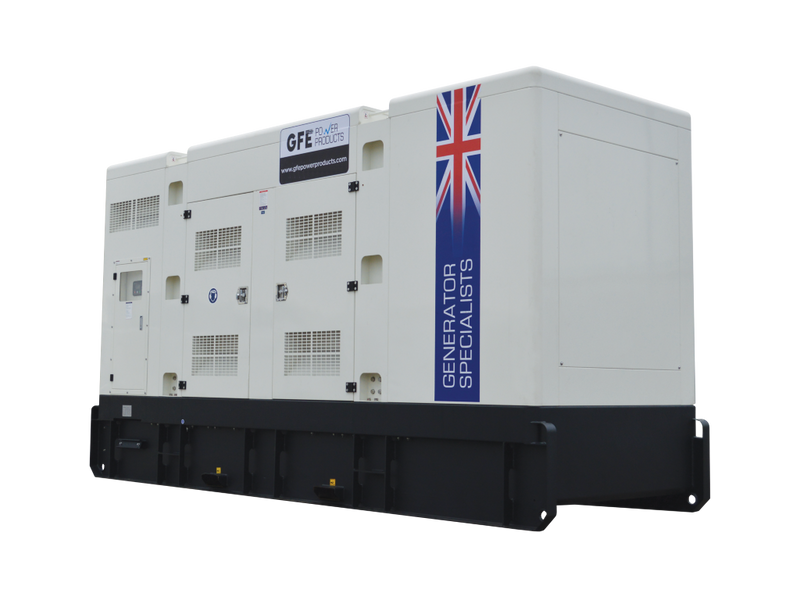

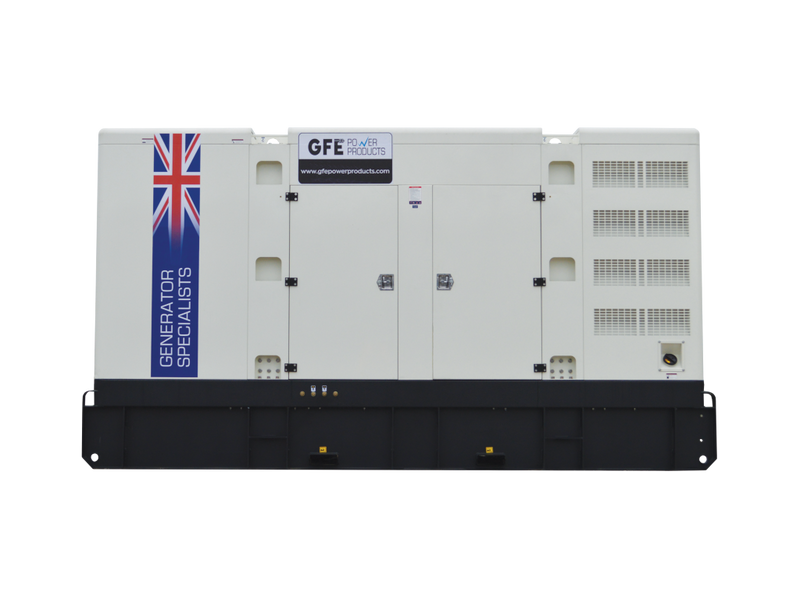

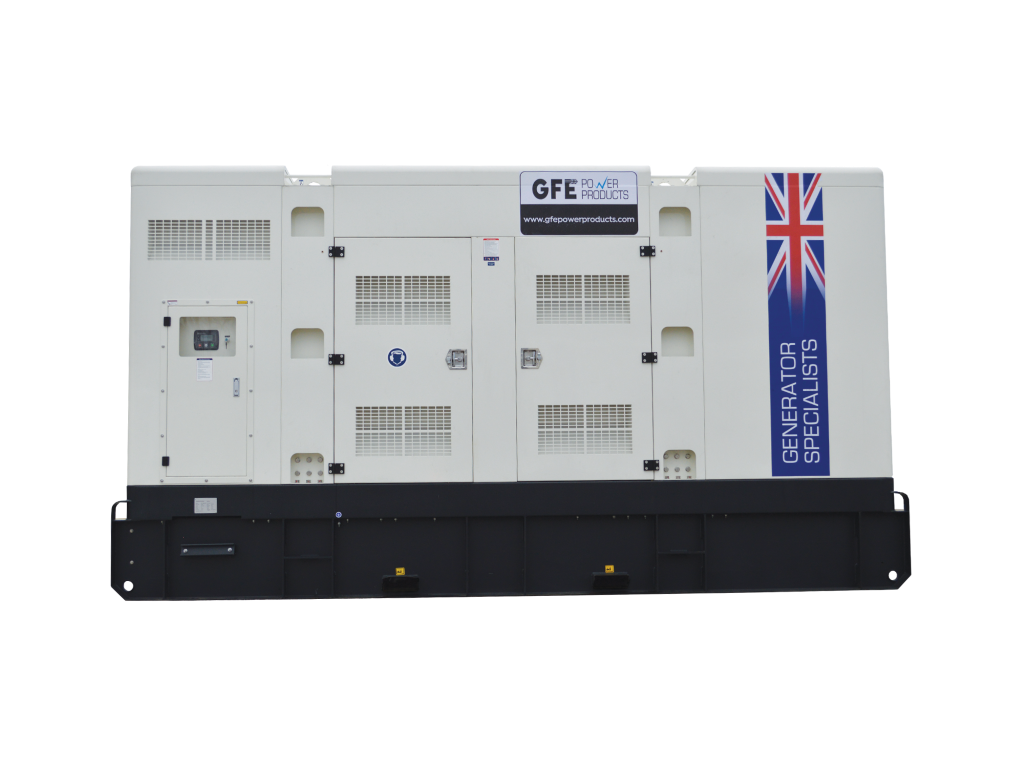

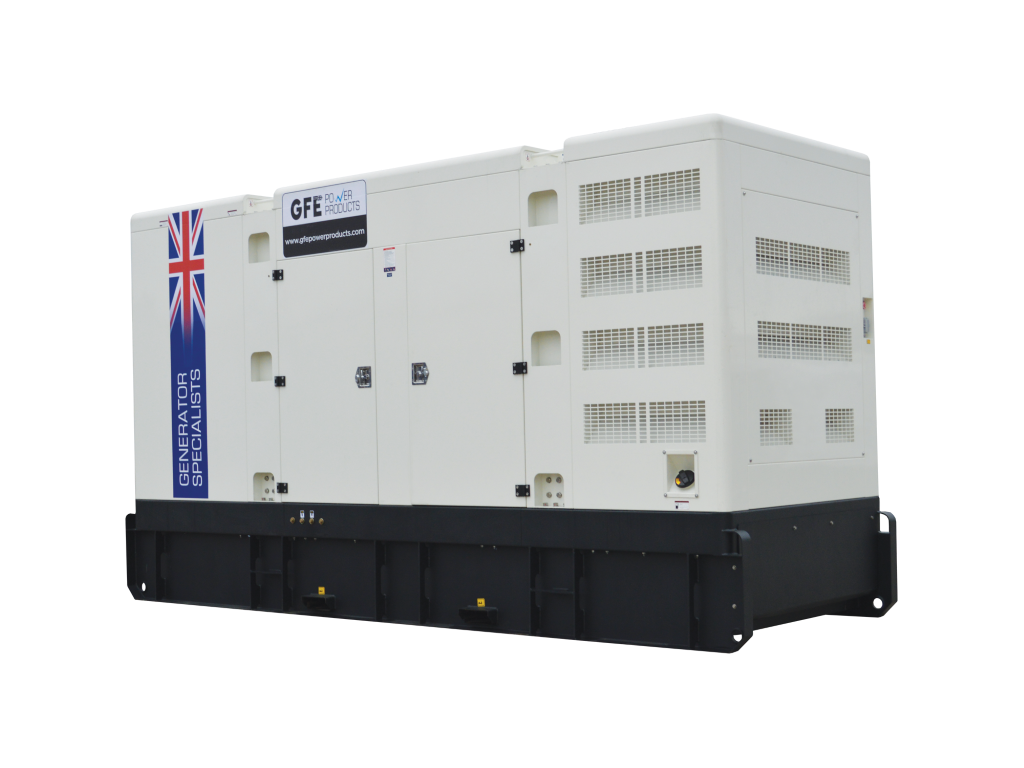

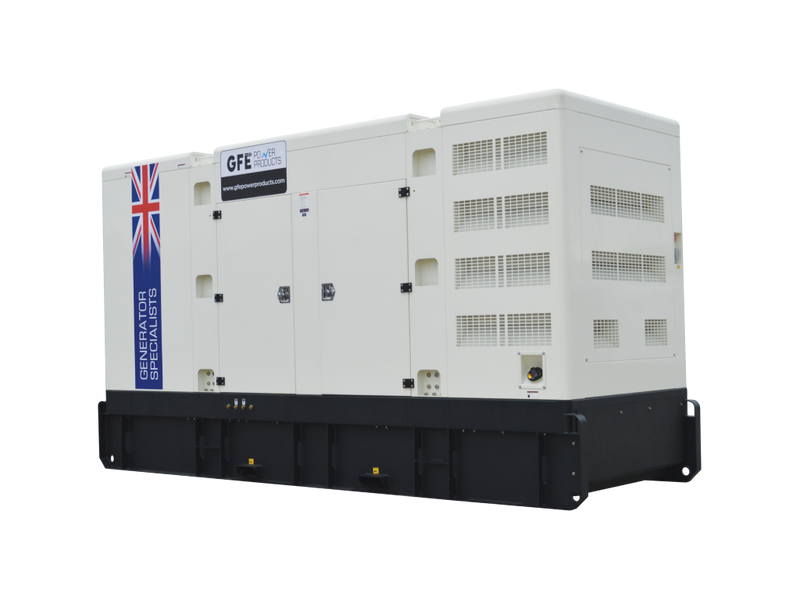

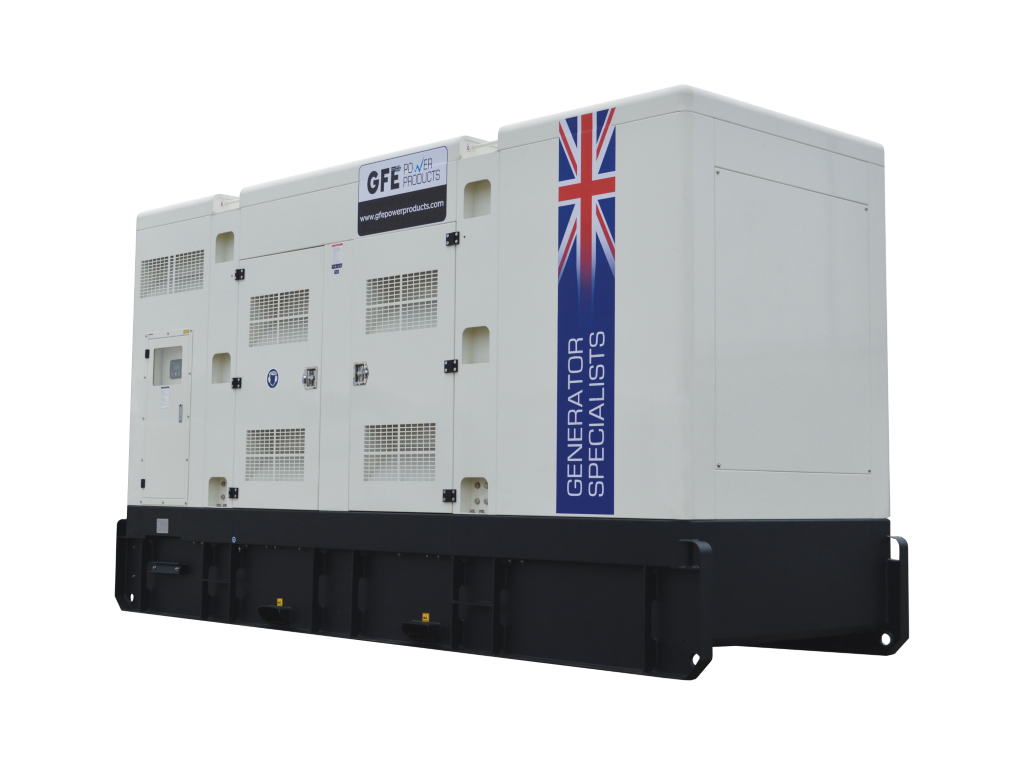

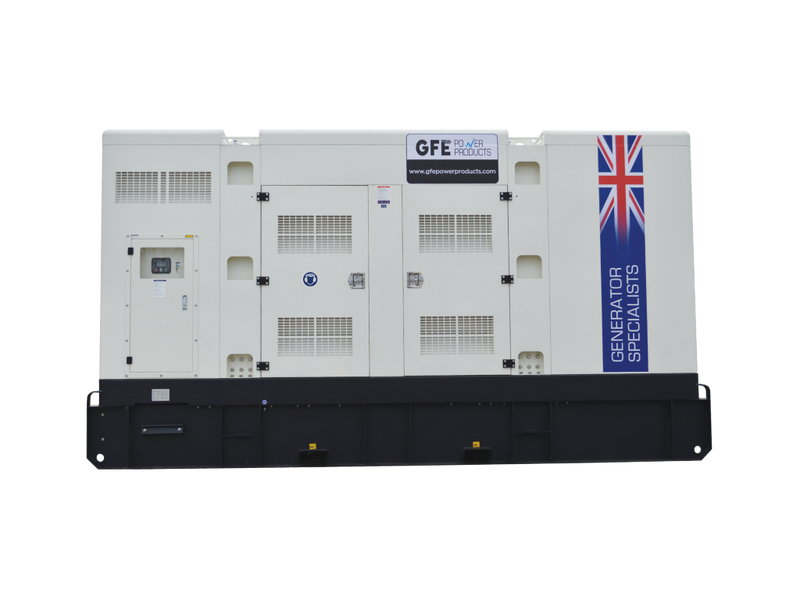

Perkins 590kVA Diesel Generator - GFE660PLC-PRO
Perkins 590kVA Diesel Generator - GFE660PLC-PRO
Perkins 590kVA Diesel Generator - GFE660PLC-PRO
Perkins 590kVA Diesel Generator - GFE660PLC-PRO

Perkins 590kVA Diesel Generator - GFE660PLC-PRO

Housing:
Tank:

The 551-1100kVA GFE Perkins Powered range can be depended on for continuous and emergency power supply in a variety of engineering projects including hospitals, factories, data centres and banks. Driven by high performance Perkins engines, the range is designed to protect institutions from the potential damage that power interruptions cause.

Model reference GFE660PLC-PRO (Canopied) / GFE660PLO-PRO (Open)
Engine Perkins 2806C-E18TAG1A
Alternator Leroy Somer TAL-047-E
Control panel Deepsea DSE4520
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 473 591
Standby Power (ERP)
 520 650


Voltage
 400V
Rated current 853 Amps
Fuel consumption @100% load L/h 129



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres
Canopied 4800 x 1822 x 2522 6300 1050
Open 3860 x 1460 x 2210 4280 1100


Datasheets

 GFE660PLC Engine Alternator
