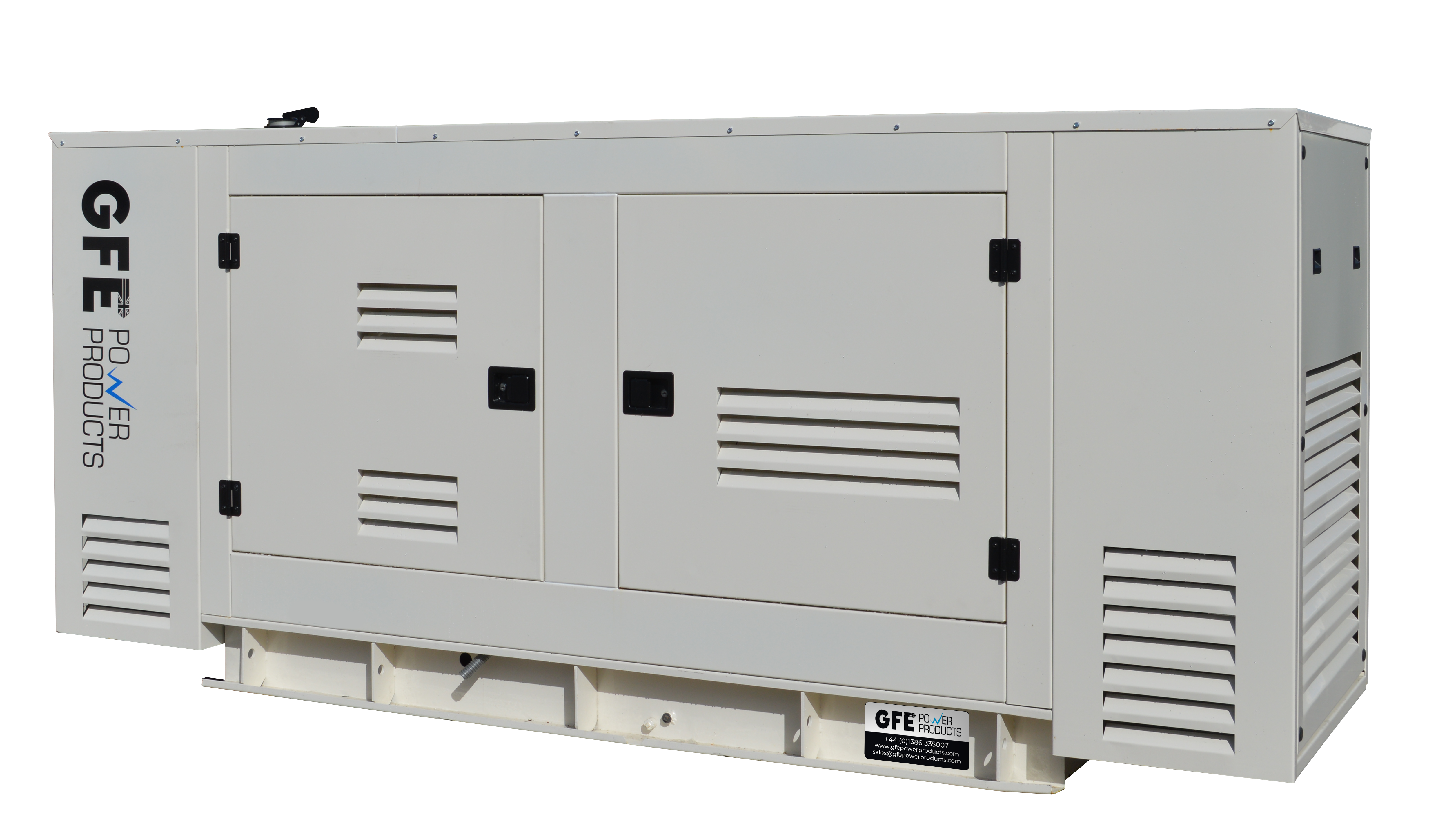

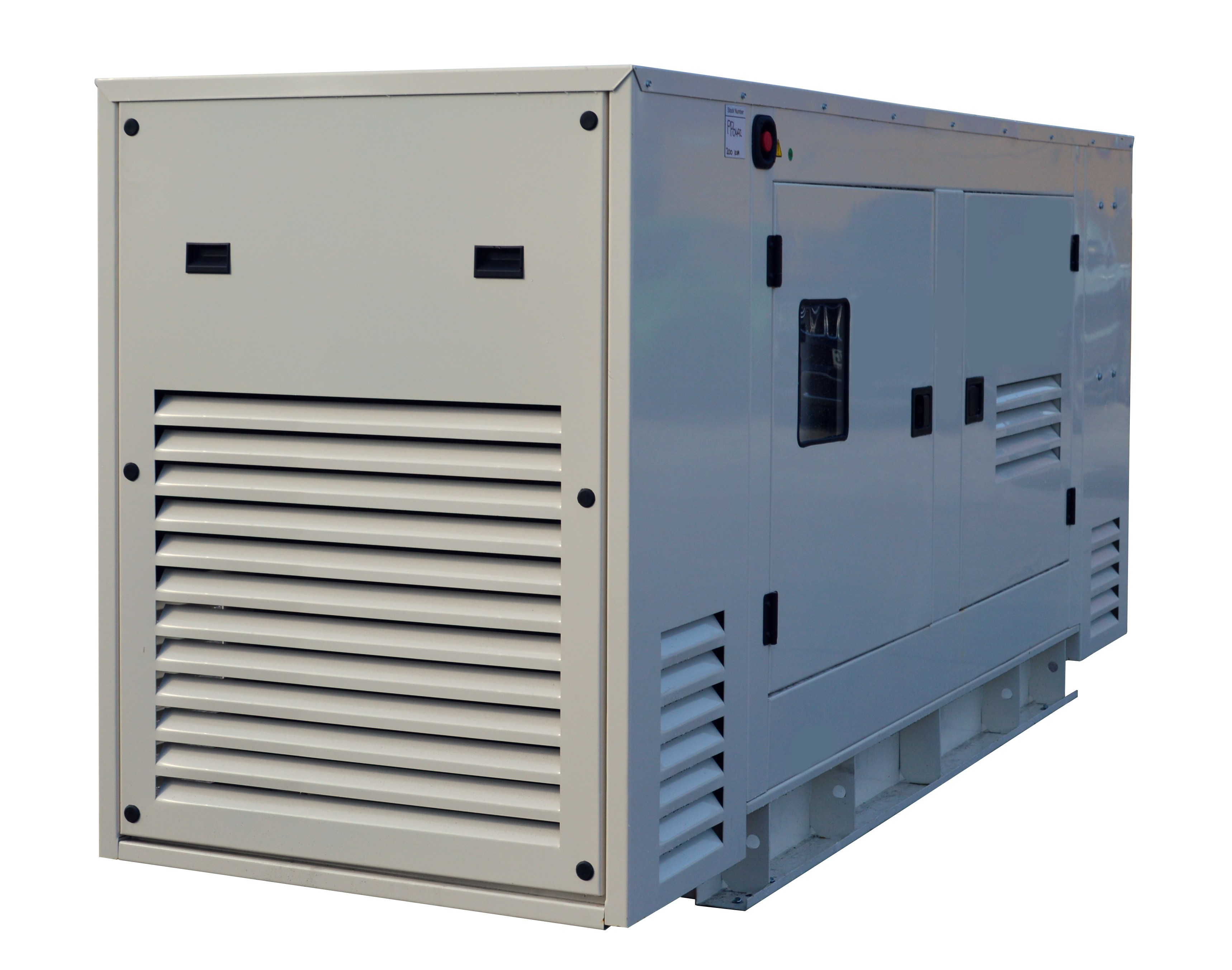

GFE275PLC Perkins Diesel Generator - 250kVA

Name: GFE275PLC Perkins Diesel Generator - 250kVA
Brand: GFE Perkins Powered
Availability: InStock

Housing:

Open Canopied

Tank:

8 hour bunded tank 24 hour bunded tank

Variant

As output demands increase the 251-550kVA GFE Perkins Powered range is ready to meet the challenge even in the harshest environments. Built around world class Perkins engines and incorporating Leroy Somers alternators and Deepsea controllers, this range is suitable for applications including agricultural, manufacturing, and heavy industrial.

Model reference	GFE275PLC (Canopied) / GFE275PLO (Open)
Engine	Perkins 1206A-E70TTAG3
Alternator	Leroy Somer TAL-046-D
Control panel	Deepsea DSE6110
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	200	250
Standby Power (ERP)	220	275

Voltage	400V
Rated current	360 Amps
Fuel consumption	@100% load L/h 56.9

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	3900 x 1430 x 2200	3095	365
Open	2900 x 995 x 1850	2092	460

Datasheets

GFE275PLC	Engine	Alternator
