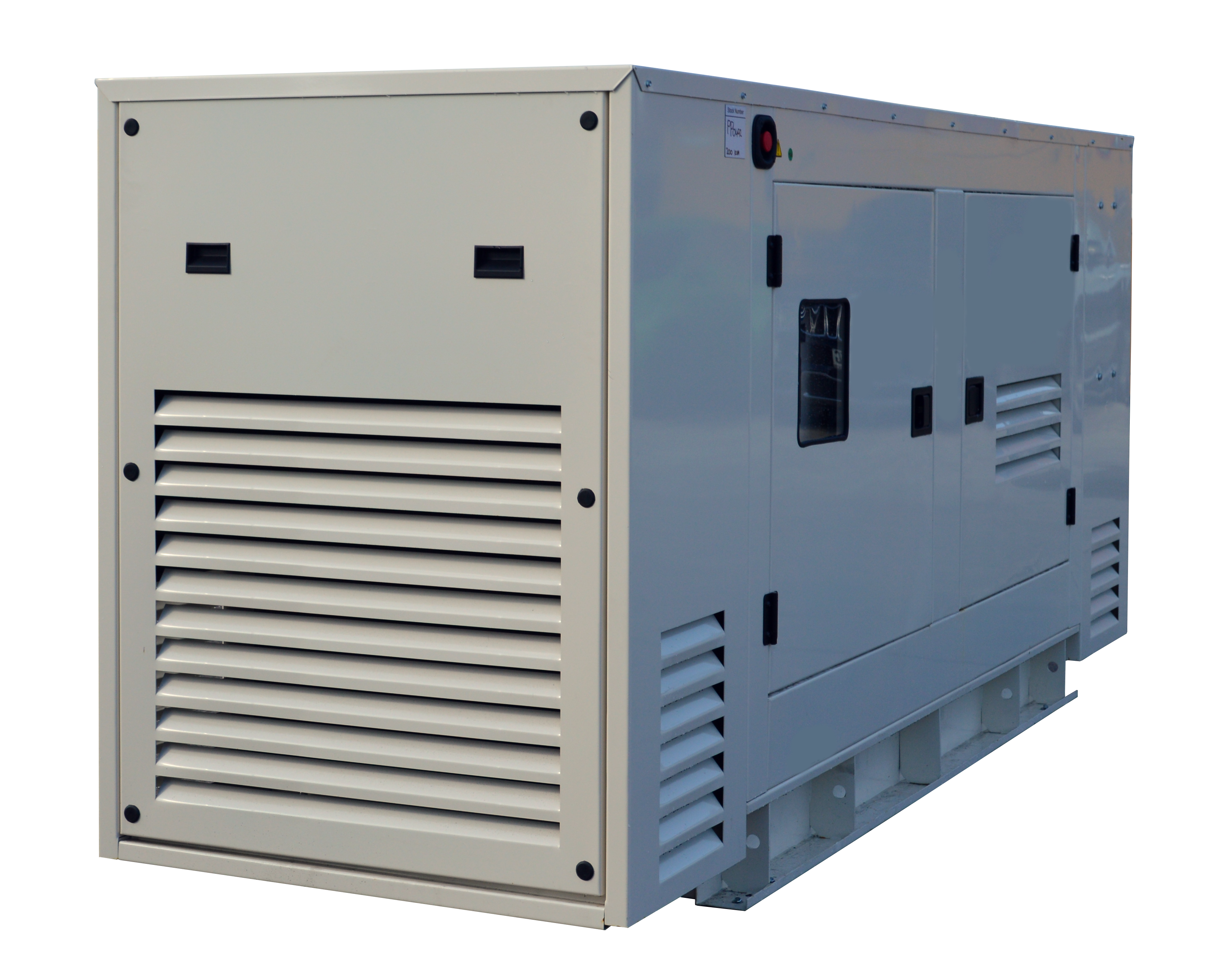

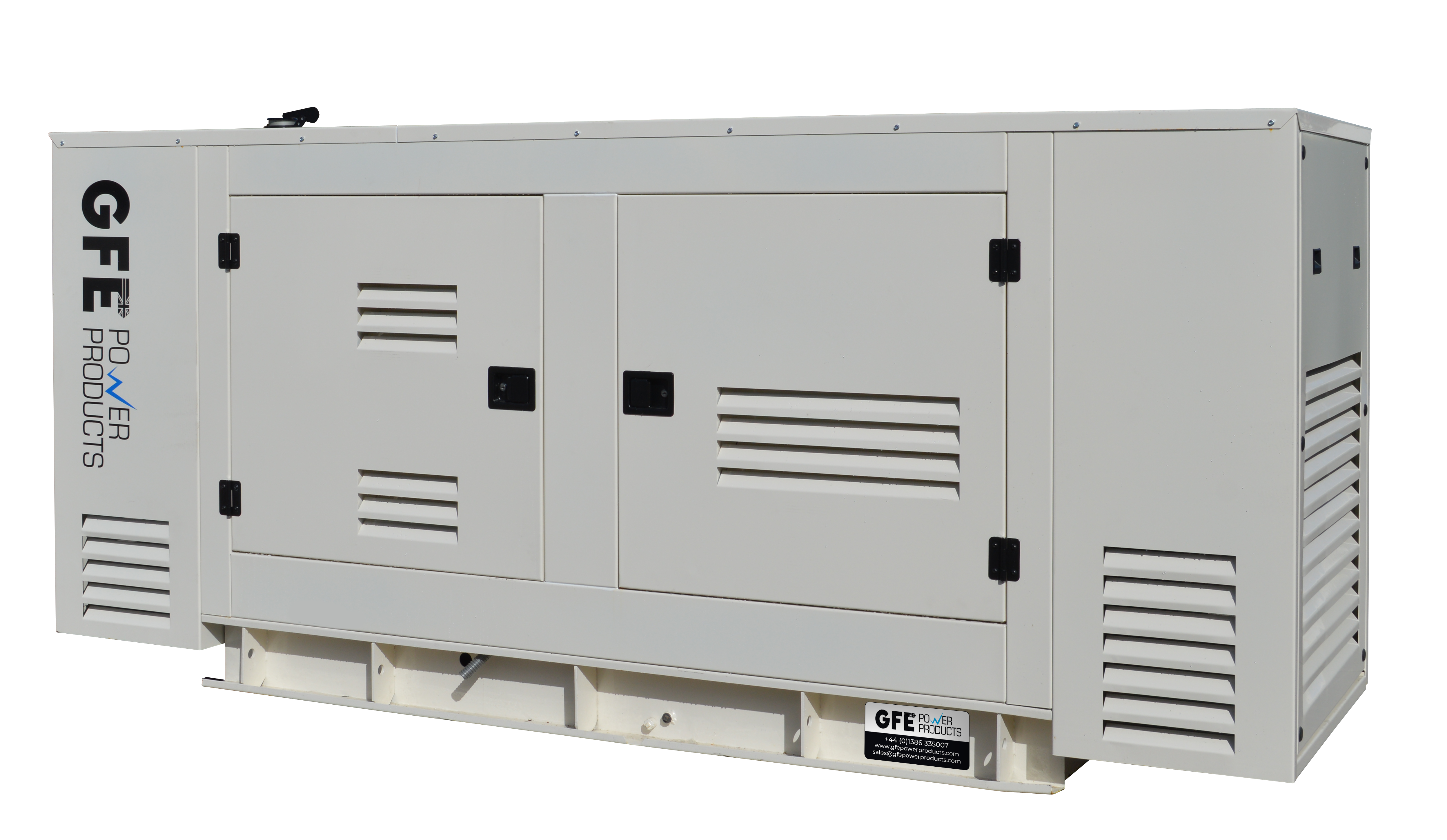

GFE440PLC Perkins Diesel Generator - 400kVA

Name: GFE440PLC Perkins Diesel Generator - 400kVA
Brand: GFE Perkins Powered
Availability: InStock

Housing:

Open Canopied

Tank:

8 hour bunded tank 24 hour bunded tank

Variant

As output demands increase the 251-550kVA GFE Perkins Powered range is ready to meet the challenge even in the harshest environments. Built around world class Perkins engines and incorporating Leroy Somers alternators and Deepsea controllers, this range is suitable for applications including agricultural, manufacturing, and heavy industrial.

Model reference	GFE440PLC (Canopied) / GFE440PLO (Open)
Engine	Perkins 2206C-E13TAG3
Alternator	Leroy Somer TAL-047-A
Control panel	Deepsea DSE4520
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	320	400
Standby Power (ERP)	352	440

Voltage	400V
Rated current	577 Amps
Fuel consumption	@100% load L/h 85

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	4400 x 1422 x 2430	4290	696
Open	3480 x 1150 x 2030	3300	614

Datasheets

GFE440PLC	Engine	Alternator
