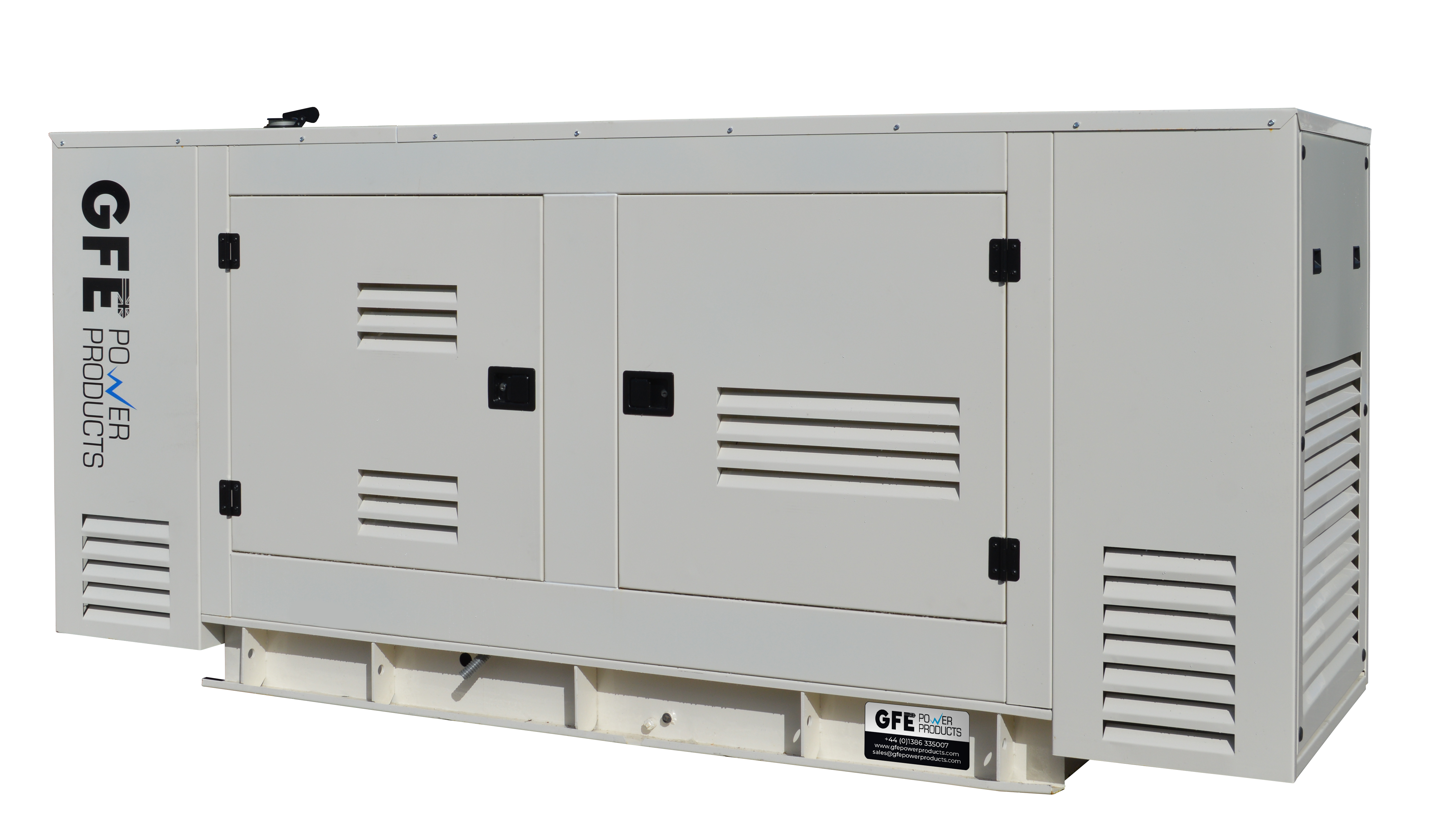

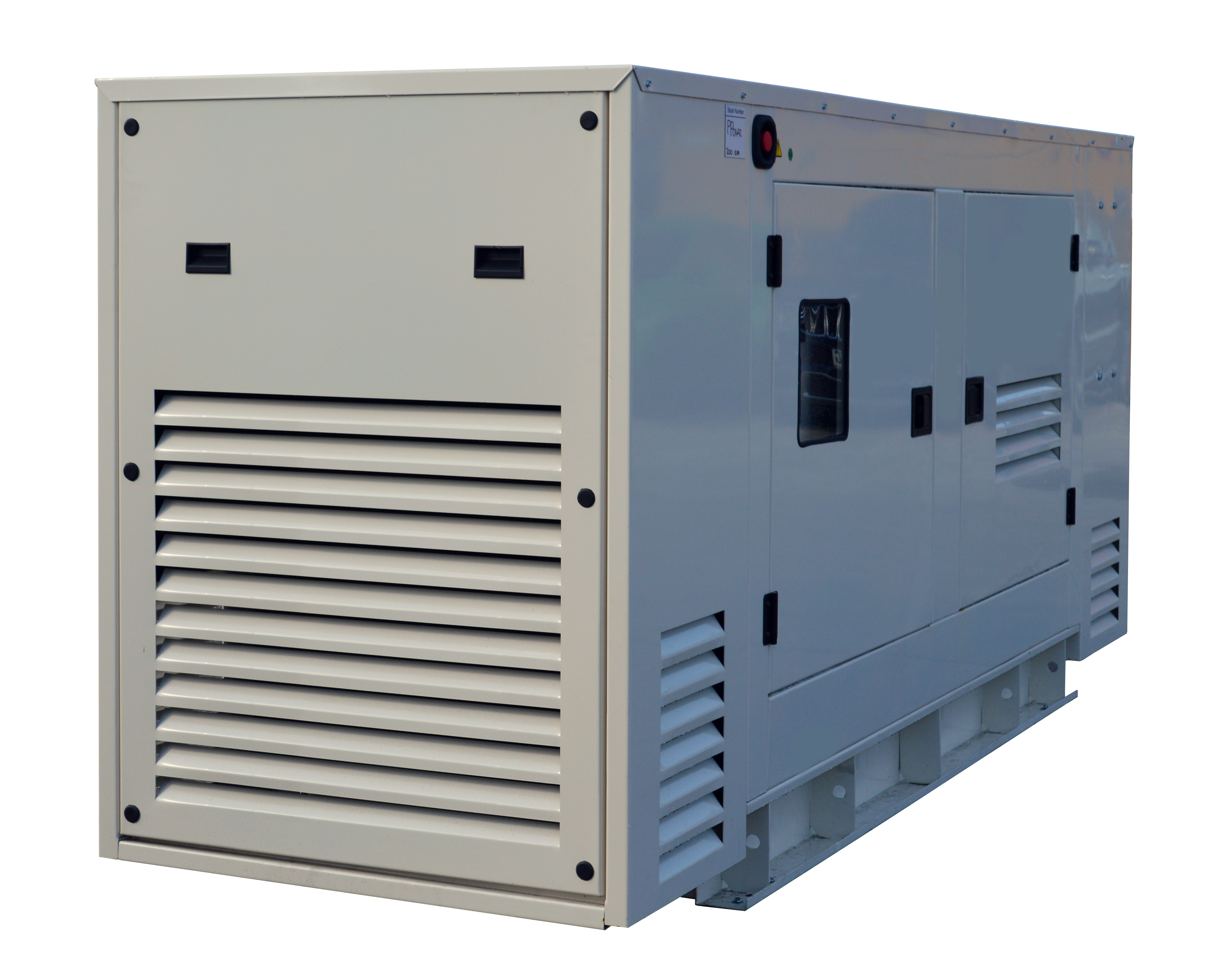

GFE660PLC Perkins Diesel Generator - 590kVA

Name: GFE660PLC Perkins Diesel Generator - 590kVA
Brand: GFE Perkins Powered
Availability: InStock

Housing:

Canopied

Tank:

8 hour bunded tank 24 hour bunded tank

Variant

The 551-1100kVA GFE Perkins Powered range can be depended on for continuous and emergency power supply in a variety of engineering projects including hospitals, factories, data centres and banks. Driven by high performance Perkins engines, the range is designed to protect institutions from the potential damage that power interruptions cause.

Model reference	GFE660PLC (Canopied) / GFE660PLO (Open)
Engine	Perkins 2806A-E18TAG1A
Alternator	Leroy Somer TAL-047-E
Control panel	Deepsea DSE6110
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	480	600
Standby Power (ERP)	528	660

Voltage	400V
Rated current
Fuel consumption	@100% load L/h 134

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	7260 x 2150 x 3220	5900	654
Open

Datasheets

GFE660PLC	Engine	Alternator
