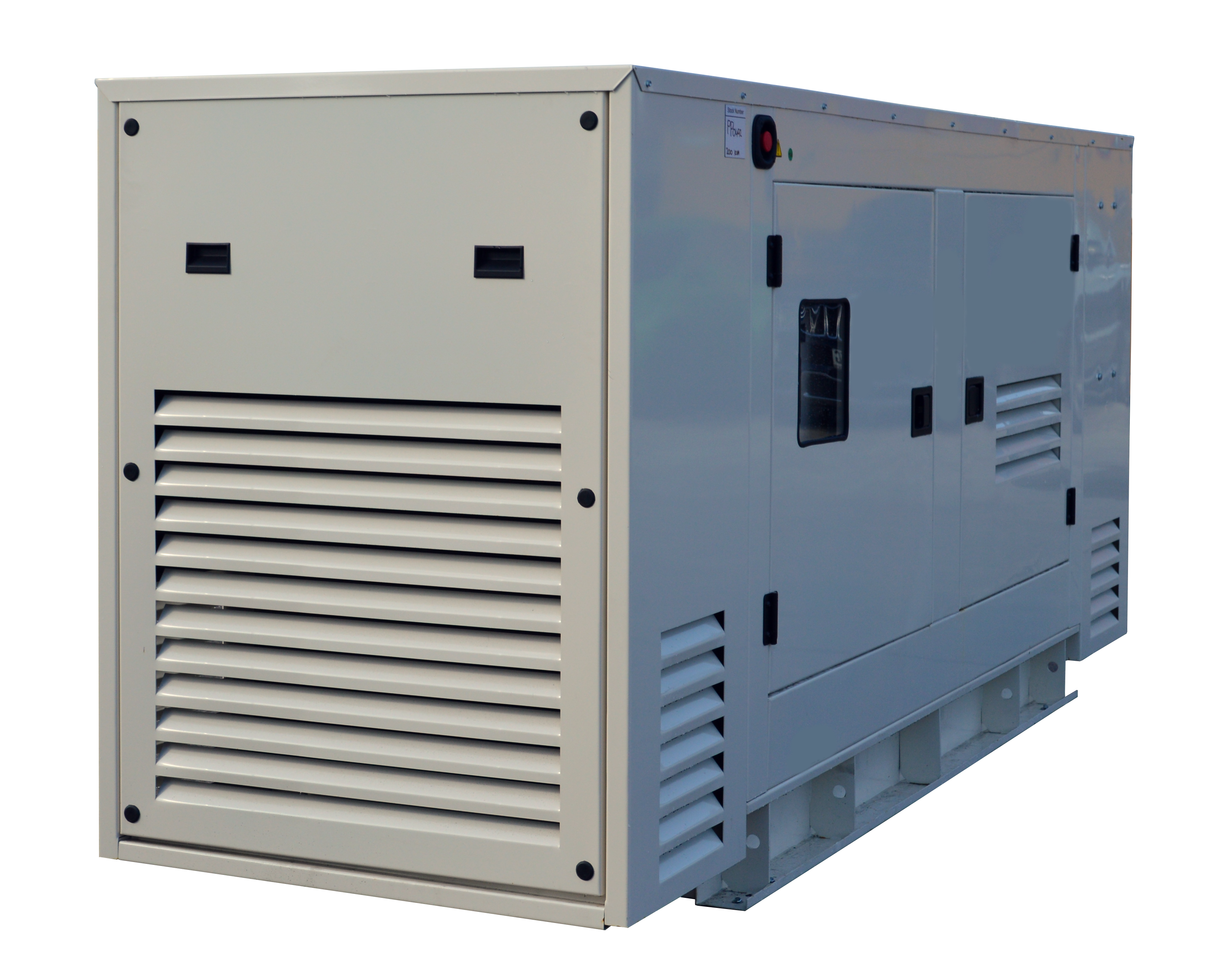

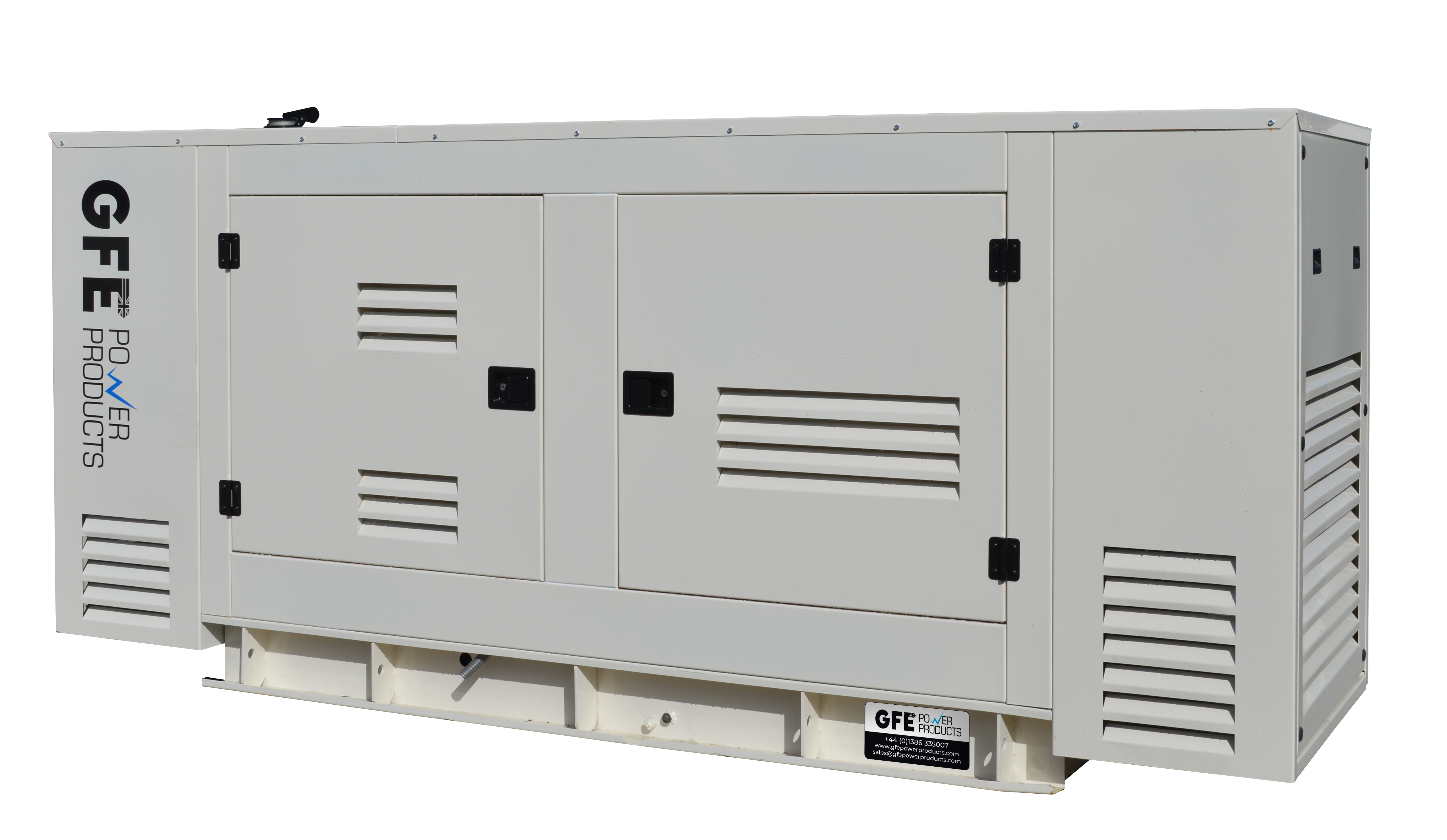

GFE770PLC Perkins Diesel Generator - 695kVA

Name: GFE770PLC Perkins Diesel Generator - 695kVA
Brand: GFE Perkins Powered
Availability: InStock

Housing:

Open Canopied

Tank:

8 hour bunded tank 24 hour bunded tank

Variant

The 551-1100kVA GFE Perkins Powered range can be depended on for continuous and emergency power supply in a variety of engineering projects including hospitals, factories, data centres and banks. Driven by high performance Perkins engines, the range is designed to protect institutions from the potential damage that power interruptions cause.

Model reference	GFE770PLC (Canopied) / GFE770PLO (Open)
Engine	Perkins 2806C-E18TAG1A
Alternator	Leroy Somer TAL-047-E
Control panel	Deepsea DSE4520
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	473	695
Standby Power (ERP)	520	770

Voltage	400V
Rated current	853 Amps
Fuel consumption	@100% load L/h 129

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	4800 x 1822 x 2522	6300	1050
Open	3860 x 1460 x 2210	4280	1100

Datasheets

GFE660PLC	Engine	Alternator
