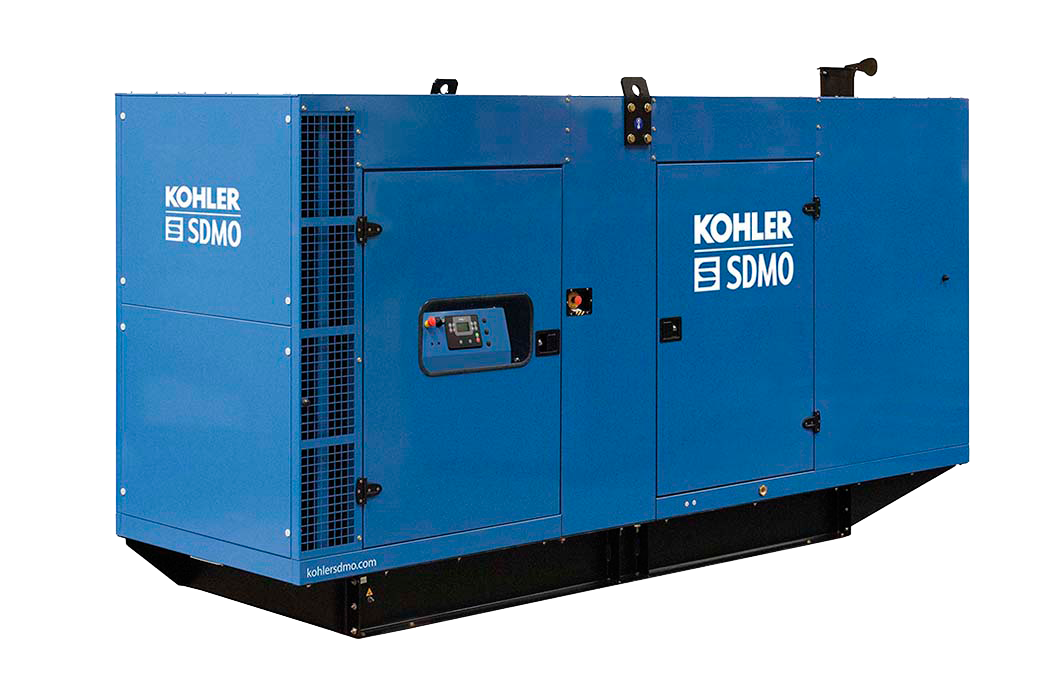

Kohler SDMO 275kVA Diesel Generator - D275

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference	D275
Engine	DOOSAN P126TI *
Alternator	KOHLER KH01380TO4D
Control panel	APM303
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	200	250
Standby Power (ERP)	220	275

Voltage	400/230V
Rated current	397 Amps
Fuel consumption	@100% load L/h 53

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Open	2900 x 1300 x 1670	2310	390
Canopied	4004 x 1380 x 2145	3160	390

Datasheets

D275
