Kohler SDMO 825kVA Diesel Generator - D830

Standard generating sets from KOHLER-SDMO are designed for industrial users and cover a wide range of applications. Offering reliable power, even in extreme conditions, the KOHLER-SDMO gensets are built with the best quality of electricity, high starting and loading capacity, according to ISO8528-5. Since 1966, SDMO industries has held a leading position in the generating set market and combines technological expertise with high-tech manufacturing procedures.

Model reference	D830
Engine	DOOSAN DP222LC *
Alternator	KOHLER KH03544TO4D
Control panel	APM403
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	600	750
Standby Power (ERP)	660	825

Voltage	400/230V
Rated current	1191 Amps
Fuel consumption	@100% load L/h 160

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres

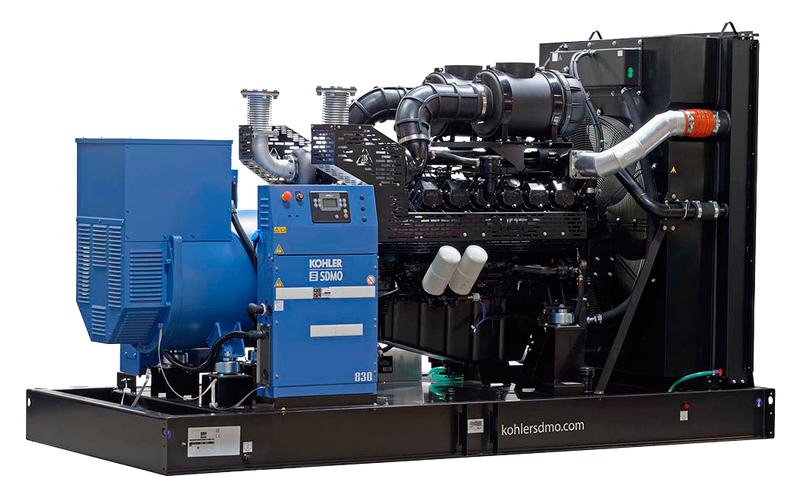

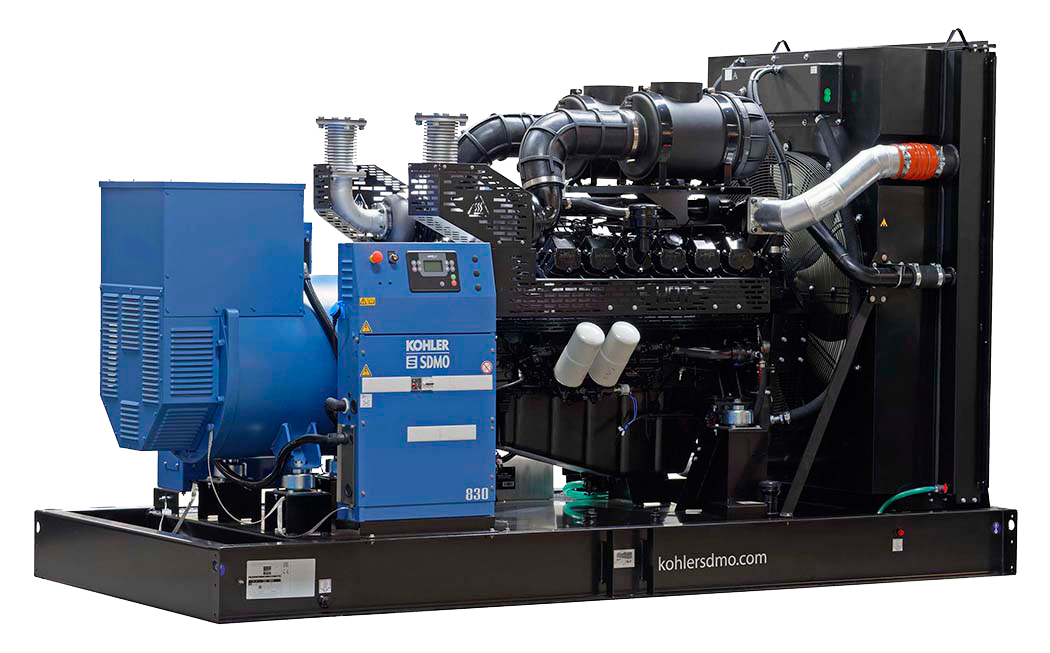

Open	3470 x 1630 x 2185	4080	610

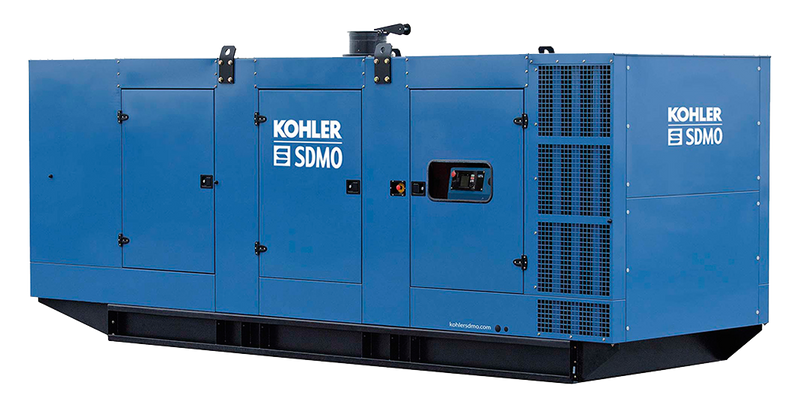

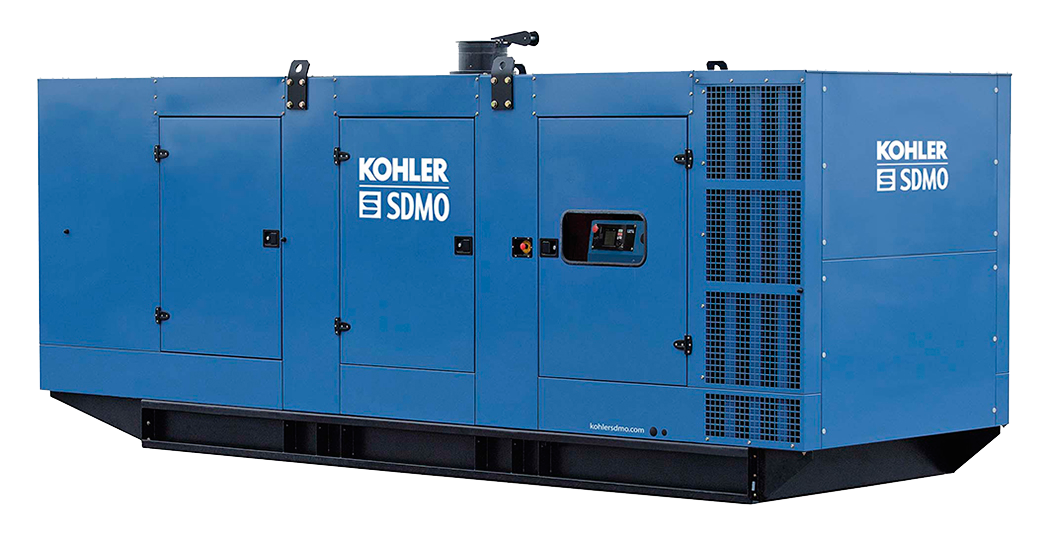

Canopied	5031 x 1690 x 2672	5720	610

Datasheets

D830
